12 - Dataset to Downstream Workflow#

Current surface: V0.29.

This tutorial is the end-to-end data-readiness recipe: start from an xarray.Dataset, run Dataset readiness, convert one scalar variable to FieldBatch, preflight the residual path, form a generator confidence report, and package downstream discovery evidence.

What you will learn#

How to inspect a Dataset without inferring PDE identity.
How to convert one explicit scalar variable into canonical FieldBatch form.
How readiness, residual preflight, confidence, and downstream workflow summaries compose.
How to read the supportability result without treating it as a benchmark claim.

Required extras#

Use .[test] or install .[xarray] and .[viz] for the Dataset and plotting portions.

Expected runtime#

Less than one minute on a laptop.

Limitations#

No file loaders, broad adapters, metadata inference, multidimensional grids, nonuniform grids, new PDEs, or new runtime APIs are introduced here.

[1]:

from __future__ import annotations

from copy import deepcopy
import json

import matplotlib.pyplot as plt
import numpy as np
import xarray as xr

from pdelie.data import from_xarray_dataset, generate_heat_1d_field_batch, split_batch_train_heldout
from pdelie.derivatives import compute_spectral_fd_derivatives
from pdelie.discovery import summarize_discovery_bridge_output, summarize_discovery_result, to_pysindy_trajectories
from pdelie.reporting import (
    summarize_downstream_discovery_workflow,
    summarize_field_batch_readiness,
    summarize_generator_confidence,
    summarize_generator_fit_diagnostics,
    summarize_residual_batch,
    summarize_verification_report,
    summarize_xarray_dataset_readiness,
)
from pdelie.residuals import HeatResidualEvaluator
from pdelie.symmetry import fit_translation_generator
from pdelie.verification import verify_translation_generator


def compact(report, keys):
    return {key: report[key] for key in keys}

[2]:

source = generate_heat_1d_field_batch(batch_size=6, num_times=33, num_points=64, seed=29012)
metadata = deepcopy(source.metadata)
metadata["parameter_tags"]["equation"] = "heat_1d"

dataset = xr.Dataset(
    {"u": (source.dims, source.values)},
    coords={"time": source.coords["time"], "x": source.coords["x"]},
    attrs={"source": "tutorial-v0.29", "note": "attrs are reported, not canonical metadata"},
)

readiness = summarize_xarray_dataset_readiness(dataset, data_var="u", metadata=metadata, expected_equation="heat_1d")
field = from_xarray_dataset(dataset, data_var="u", var_name="u", metadata=metadata, preprocess_log=[{"operation": "tutorial_dataset_source"}])

print(json.dumps(compact(readiness, ["summary_type", "readiness_label", "selected_data_var", "candidate_variables"]), indent=2))
print("FieldBatch shape:", field.values.shape)
print("Preprocess operations:", [entry["operation"] for entry in field.preprocess_log])

{
  "summary_type": "xarray_dataset_readiness",
  "readiness_label": "ready",
  "selected_data_var": "u",
  "candidate_variables": [
    {
      "name": "u",
      "dims": [
        "batch",
        "time",
        "x",
        "var"
      ],
      "shape": [
        6,
        33,
        64,
        1
      ],
      "dtype": "float64",
      "numeric": true,
      "finite": true,
      "boolean_mask_like": false,
      "mask_candidate": false,
      "compatible": true,
      "failures": []
    }
  ]
}
FieldBatch shape: (6, 33, 64, 1)
Preprocess operations: ['tutorial_dataset_source', 'from_xarray_dataset', 'from_xarray']

[3]:

evaluator = HeatResidualEvaluator()
train, heldout = split_batch_train_heldout(field, train_size=3, seed=29013)
field_readiness = summarize_field_batch_readiness(train, residual_evaluator=evaluator, expected_equation="heat_1d")
derivatives = compute_spectral_fd_derivatives(train)
residual = evaluator.evaluate(train, derivatives)
generator = fit_translation_generator(train, evaluator, epsilon=1e-4)
verification = verify_translation_generator(heldout, generator, evaluator)
confidence = summarize_generator_confidence(
    residual=summarize_residual_batch(residual),
    generator=generator,
    fit_diagnostics=summarize_generator_fit_diagnostics(generator),
    verification=summarize_verification_report(verification),
    thresholds={"residual_rms": 1e-5, "verification_first_error": 5e-4},
)

print(json.dumps({
    "field_readiness": field_readiness["readiness_label"],
    "residual_rms": confidence["residual"]["rms_residual"],
    "fit_evidence": confidence["fit_diagnostics"]["evidence_label"],
    "verification": confidence["verification"]["classification"],
    "confidence": confidence["confidence_label"],
}, indent=2))

{
  "field_readiness": "ready",
  "residual_rms": 1.0601002183749474e-05,
  "fit_evidence": "direct_svd_in_tolerance",
  "verification": "exact",
  "confidence": "failed"
}

[4]:

trajectories, time_values, feature_names = to_pysindy_trajectories(train)
bridge = summarize_discovery_bridge_output(
    trajectories,
    time_values,
    feature_names,
    source_field_id="tutorial-heat-train-field",
    provenance={"workflow": "dataset_to_downstream", "release": "v0.29"},
)
manual_result = summarize_discovery_result(
    {
        "status": "success",
        "backend": "manual_backend_neutral",
        "feature_names": ["u"],
        "library_feature_names": ["u_xx"],
        "coefficients": [[0.1]],
        "equation_terms": {"u": {"u_xx": 0.1}},
        "equation_strings": {"u": "0.1*u_xx"},
        "fit_diagnostics": {"purpose": "tutorial_contract_summary_not_backend_benchmark"},
    },
    target_terms={"u": {"u_xx": 0.1}},
    source_result_id="manual-heat-reference",
)
workflow = summarize_downstream_discovery_workflow(
    field_readiness=field_readiness,
    generator_confidence=confidence,
    discovery_inputs=bridge,
    discovery_result=manual_result,
    extra_metrics={"workflow_recipe": "dataset_to_downstream", "release": "v0.29"},
)

print(json.dumps({
    "bridge": compact(bridge, ["summary_type", "trajectory_count", "num_state_features", "num_times"]),
    "recovery": manual_result["recovery"]["by_feature"]["u"]["classification"],
    "workflow_label": workflow["workflow_label"],
    "missing_evidence": workflow["missing_evidence"],
}, indent=2))

{
  "bridge": {
    "summary_type": "discovery_bridge_output",
    "trajectory_count": 3,
    "num_state_features": 64,
    "num_times": 33
  },
  "recovery": "exact",
  "workflow_label": "failed",
  "missing_evidence": [
    "orbit_provenance",
    "split_provenance"
  ]
}

[5]:

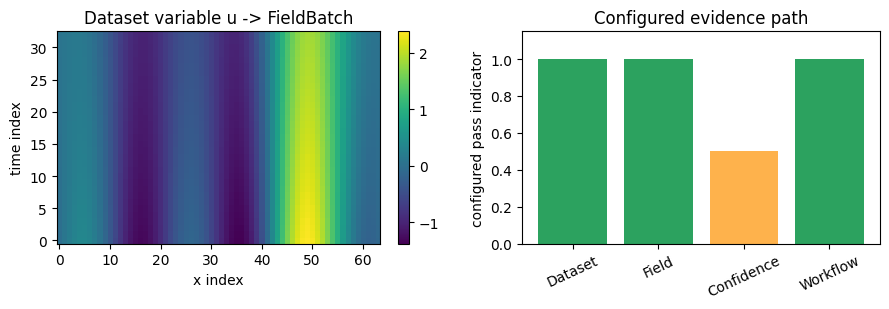

fig, axes = plt.subplots(1, 2, figsize=(9, 3.2))
image = axes[0].imshow(field.values[0, :, :, 0], aspect="auto", origin="lower", cmap="viridis")
axes[0].set_title("Dataset variable u -> FieldBatch")
axes[0].set_xlabel("x index")
axes[0].set_ylabel("time index")
fig.colorbar(image, ax=axes[0], fraction=0.046)

labels = ["Dataset", "Field", "Confidence", "Workflow"]
status_values = [1, 1, 1 if confidence["confidence_label"] == "strong" else 0.5, 1]
colors = ["#2ca25f" if value == 1 else "#feb24c" for value in status_values]
axes[1].bar(labels, status_values, color=colors)
axes[1].set_ylim(0, 1.15)
axes[1].set_title("Configured evidence path")
axes[1].set_ylabel("configured pass indicator")
axes[1].tick_params(axis="x", rotation=25)
plt.tight_layout()

../_images/tutorials_12_dataset_to_downstream_workflow_5_0.png

Takeaway#

The V0.29 recipe does not add a new helper. It shows how existing Dataset readiness, FieldBatch readiness, residual preflight, generator confidence, and downstream discovery summaries already compose into a defensible workflow.
