PDE time series to generators with confidence#

Current surface: V0.29.

Purpose#

Quickstart for the V0.29 surface: start from a canonical PDE time series, compute derivatives and residuals, fit a translation generator, verify it on held-out data, and read the confidence evidence.

What you will learn#

How FieldBatch, DerivativeBatch, ResidualBatch, GeneratorFamily, and VerificationReport fit together.
How metadata tags keep residual evaluators honest.
How direct SVD evidence, fallback status, span distance, and verification errors should be read together.
How the same pipeline covers Heat, Fisher-KPP reaction-diffusion, and the V0.19 advection-diffusion strong path.

Required extras#

Core install is enough for the code; Matplotlib is used only for optional tutorial plots and is included in .[test].

Expected runtime#

About 1-2 minutes on a laptop.

Out of scope#

No new PDEs, no KS public API, no weak-form workflow, no train/test policy, and no claim that empirical verification is a mathematical proof.

These notebooks are tutorials, not API contracts. Example outputs are runtime summaries, not canonical paper artifacts.

[1]:

from pathlib import Path
import sys

ROOT = Path.cwd()
if not (ROOT / "pyproject.toml").exists():
    ROOT = ROOT.parent
if str(ROOT) not in sys.path:
    sys.path.insert(0, str(ROOT))
import numpy as np

from notebooks._tutorial_utils import (
    confidence_card,
    field_snapshot,
    plot_field_heatmap,
    plot_singular_values,
    plot_verification_curve,
    pretty_json,
    print_cards,
)
from pdelie.data import (
    generate_advection_diffusion_1d_field_batch,
    generate_heat_1d_field_batch,
    generate_reaction_diffusion_1d_field_batch,
    split_batch_train_heldout,
)
from pdelie.derivatives import compute_spectral_fd_derivatives
from pdelie.reporting import (
    summarize_generator_confidence,
    summarize_generator_fit_diagnostics,
    summarize_residual_batch,
    summarize_verification_report,
    summarize_vertical_slice,
)
from pdelie.residuals import (
    AdvectionDiffusionResidualEvaluator,
    HeatResidualEvaluator,
    ReactionDiffusionResidualEvaluator,
)
from pdelie.symmetry import fit_translation_generator
from pdelie.verification import verify_translation_generator

CONFIG = {
    "fit_epsilon": 1e-4,
    "verification_epsilons": None,
    "span_tolerance": 5e-2,
    "heat_seed_train": 100,
    "heat_seed_heldout": 101,
    "reaction_diffusion_seed": 18018,
    "reaction_diffusion_split_seed": 18019,
    "advection_diffusion_seed": 19019,
    "advection_diffusion_split_seed": 19020,
}
CONFIG

[1]:

{'fit_epsilon': 0.0001,
 'verification_epsilons': None,
 'span_tolerance': 0.05,
 'heat_seed_train': 100,
 'heat_seed_heldout': 101,
 'reaction_diffusion_seed': 18018,
 'reaction_diffusion_split_seed': 18019,
 'advection_diffusion_seed': 19019,
 'advection_diffusion_split_seed': 19020}

1. Canonical fields are the common currency#

FieldBatch is the object that lets data generation, residual evaluation, fitting, verification, and downstream helpers agree on axes, coordinates, variables, metadata, and provenance.

[2]:

heat_train = generate_heat_1d_field_batch(batch_size=4, num_times=33, num_points=64, seed=CONFIG["heat_seed_train"])
heat_heldout = generate_heat_1d_field_batch(batch_size=3, num_times=33, num_points=64, seed=CONFIG["heat_seed_heldout"])

print(pretty_json(field_snapshot(heat_train), max_chars=2000))

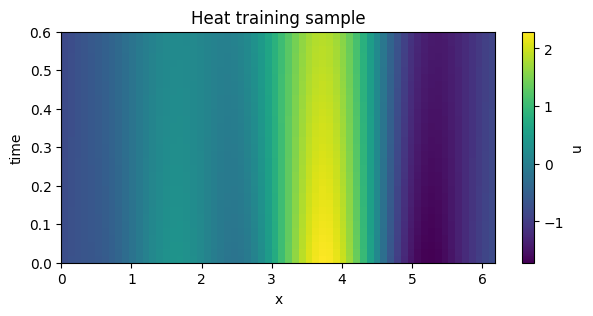

plot_field_heatmap(heat_train, title="Heat training sample")

{
  "dims": [
    "batch",
    "time",
    "x",
    "var"
  ],
  "mask_present": false,
  "metadata_parameter_tags": {
    "nu": 0.1
  },
  "preprocess_steps": 0,
  "shape": [
    4,
    33,
    64,
    1
  ],
  "time_points": 33,
  "var_names": [
    "u"
  ],
  "x_points": 64
}

../_images/tutorials_00_pde_timeseries_to_generators_3_1.png

2. Residuals define the scientific target#

PDELie does not fit symmetries in a vacuum. A generator is meaningful only relative to the residual it preserves.

[3]:

heat_derivatives = compute_spectral_fd_derivatives(heat_train)
heat_evaluator = HeatResidualEvaluator()
heat_residual = heat_evaluator.evaluate(heat_train, heat_derivatives)
heat_residual_summary = summarize_residual_batch(heat_residual)
heat_residual_summary

[3]:

{'summary_schema_version': '0.1',
 'summary_type': 'residual_batch',
 'residual_shape': [4, 33, 64, 1],
 'definition_type': 'analytic',
 'normalization': 'none',
 'max_abs_residual': 5.0258378954559646e-05,
 'rms_residual': 1.0771339104663567e-05,
 'diagnostics': {'backend': 'spectral_fd',
  'nu': 0.1,
  'max_abs_residual': 5.0258378954559646e-05}}

3. Fit, verify, then inspect the confidence card#

The fitted object is a GeneratorFamily. The confidence card summarizes residual health, fit conditioning, span evidence, and held-out finite-transform verification.

[4]:

heat_generator = fit_translation_generator(
    heat_train,
    heat_evaluator,
    epsilon=CONFIG["fit_epsilon"],
)
heat_verification = verify_translation_generator(
    heat_heldout,
    heat_generator,
    heat_evaluator,
    epsilon_values=CONFIG["verification_epsilons"],
    span_tolerance=CONFIG["span_tolerance"],
)

heat_fit_summary = summarize_generator_fit_diagnostics(heat_generator)
heat_verification_summary = summarize_verification_report(heat_verification)
heat_vertical_slice = summarize_vertical_slice(
    derivatives=heat_derivatives,
    residual=heat_residual,
    generator=heat_generator,
    verification=heat_verification,
    extra_metrics={"case": "heat_quickstart"},
)
heat_confidence = summarize_generator_confidence(
    residual=heat_residual,
    generator=heat_generator,
    verification=heat_verification,
    thresholds={
        "residual_max_abs": 1e-3,
        "residual_rms": 1e-4,
        "verification_first_error": 1e-5,
        "verification_max_error": 1e-4,
    },
    extra_metrics={"label": "heat fitted translation"},
)
heat_card = {
    "label": "heat fitted translation",
    "confidence_label": heat_confidence["confidence_label"],
    "residual_status": heat_confidence["component_statuses"]["residual"]["status"],
    "fit_status": heat_confidence["component_statuses"]["fit"]["status"],
    "verification_status": heat_confidence["component_statuses"]["verification"]["status"],
}
print_cards([heat_card])
print(pretty_json({
    "vertical_slice_summary_type": heat_vertical_slice["summary_type"],
    "nested_sections": ["residual", "generator", "verification"],
}, max_chars=1500))

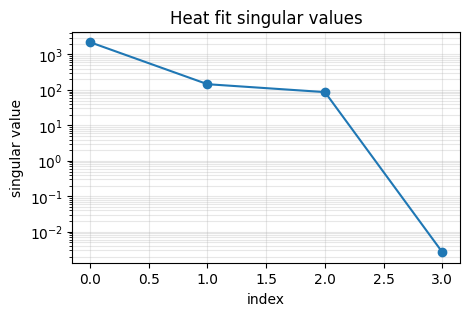

plot_singular_values(heat_fit_summary, title="Heat fit singular values")

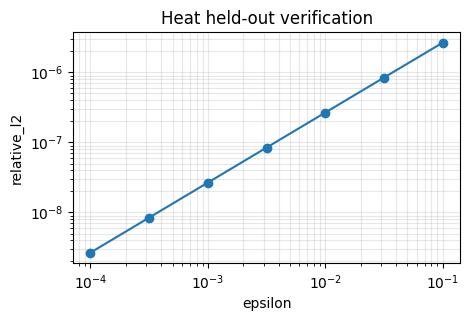

plot_verification_curve(heat_verification_summary, title="Heat held-out verification")

[
  {
    "confidence_label": "strong",
    "fit_status": "passed",
    "label": "heat fitted translation",
    "residual_status": "passed",
    "verification_status": "passed"
  }
]
{
  "nested_sections": [
    "residual",
    "generator",
    "verification"
  ],
  "vertical_slice_summary_type": "vertical_slice"
}

../_images/tutorials_00_pde_timeseries_to_generators_7_1.png

../_images/tutorials_00_pde_timeseries_to_generators_7_2.png

4. Same workflow, Fisher-KPP and advection-diffusion#

V0.18 added the scalar 1D periodic Fisher-KPP reaction-diffusion path. V0.19 added a similarly scoped constant-coefficient advection-diffusion path. They are good tutorial contrasts: one reacts and diffuses; the other advects like a smoke line while diffusion smooths it. Both stay inside the same strong-form scalar 1D periodic pipeline.

[5]:

rd_field = generate_reaction_diffusion_1d_field_batch(batch_size=5, seed=CONFIG["reaction_diffusion_seed"])
rd_train, rd_heldout = split_batch_train_heldout(
    rd_field,
    train_size=2,
    seed=CONFIG["reaction_diffusion_split_seed"],
)
rd_evaluator = ReactionDiffusionResidualEvaluator()
rd_derivatives = compute_spectral_fd_derivatives(rd_train)
rd_residual = rd_evaluator.evaluate(rd_train, rd_derivatives)
rd_generator = fit_translation_generator(rd_train, rd_evaluator, epsilon=CONFIG["fit_epsilon"])
rd_verification = verify_translation_generator(rd_heldout, rd_generator, rd_evaluator)
rd_fit_summary = summarize_generator_fit_diagnostics(rd_generator)
rd_verification_summary = summarize_verification_report(rd_verification)
rd_confidence = summarize_generator_confidence(
    residual=rd_residual,
    generator=rd_generator,
    verification=rd_verification,
    thresholds={
        "residual_max_abs": 5e-4,
        "residual_rms": 5e-5,
        "verification_first_error": 5e-4,
        "verification_max_error": 5e-3,
    },
    extra_metrics={"label": "Fisher-KPP fitted translation"},
)

ad_field = generate_advection_diffusion_1d_field_batch(batch_size=5, seed=CONFIG["advection_diffusion_seed"])
ad_train, ad_heldout = split_batch_train_heldout(
    ad_field,
    train_size=2,
    seed=CONFIG["advection_diffusion_split_seed"],
)
ad_evaluator = AdvectionDiffusionResidualEvaluator()
ad_derivatives = compute_spectral_fd_derivatives(ad_train)
ad_residual = ad_evaluator.evaluate(ad_train, ad_derivatives)
ad_generator = fit_translation_generator(ad_train, ad_evaluator, epsilon=CONFIG["fit_epsilon"])
ad_verification = verify_translation_generator(ad_heldout, ad_generator, ad_evaluator)
ad_fit_summary = summarize_generator_fit_diagnostics(ad_generator)
ad_verification_summary = summarize_verification_report(ad_verification)
ad_confidence = summarize_generator_confidence(
    residual=ad_residual,
    generator=ad_generator,
    verification=ad_verification,
    thresholds={
        "residual_max_abs": 5e-4,
        "residual_rms": 5e-5,
        "verification_first_error": 5e-4,
        "verification_max_error": 5e-3,
    },
    extra_metrics={"label": "advection-diffusion fitted translation"},
)

cards = [
    heat_card,
    {
        "label": "Fisher-KPP fitted translation",
        "equation_tag": rd_train.metadata["parameter_tags"]["equation"],
        "confidence_label": rd_confidence["confidence_label"],
        "fit_evidence": rd_fit_summary["evidence_label"],
        "fallback": rd_fit_summary["reference_fallback_used"],
        "verification": rd_verification_summary["classification"],
    },
    {
        "label": "advection-diffusion fitted translation",
        "equation_tag": ad_train.metadata["parameter_tags"]["equation"],
        "confidence_label": ad_confidence["confidence_label"],
        "fit_evidence": ad_fit_summary["evidence_label"],
        "fallback": ad_fit_summary["reference_fallback_used"],
        "verification": ad_verification_summary["classification"],
    },
]
print_cards(cards)

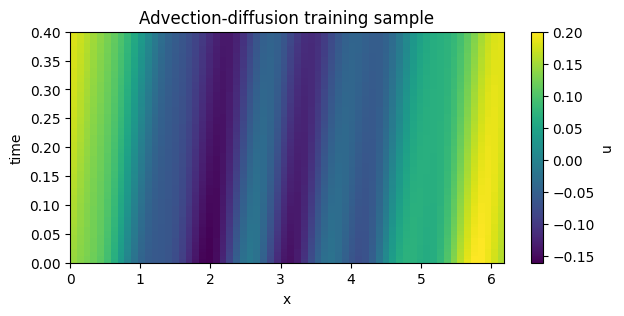

plot_field_heatmap(ad_train, title="Advection-diffusion training sample")

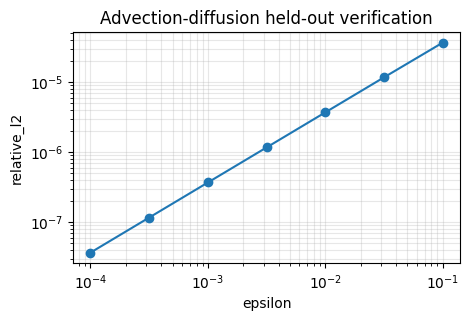

plot_verification_curve(ad_verification_summary, title="Advection-diffusion held-out verification")

[
  {
    "confidence_label": "strong",
    "fit_status": "passed",
    "label": "heat fitted translation",
    "residual_status": "passed",
    "verification_status": "passed"
  },
  {
    "confidence_label": "strong",
    "equation_tag": "reaction_diffusion_fisher_kpp",
    "fallback": false,
    "fit_evidence": "direct_svd_in_tolerance",
    "label": "Fisher-KPP fitted translation",
    "verification": "exact"
  },
  {
    "confidence_label": "strong",
    "equation_tag": "advection_diffusion_constant_coefficient",
    "fallback": false,
    "fit_evidence": "direct_svd_in_tolerance",
    "label": "advection-diffusion fitted translation",
    "verification": "exact"
  }
]

../_images/tutorials_00_pde_timeseries_to_generators_9_1.png

../_images/tutorials_00_pde_timeseries_to_generators_9_2.png

Recap#

You saw the core V0.29 flow: canonical field, derivatives, residual, fitted translation generator, held-out verification, and package-level confidence reporting across Heat, Fisher-KPP, and advection-diffusion.

Common pitfalls#

Treating generator coefficients as enough evidence by themselves.
Ignoring metadata tags; residual evaluators use them to reject the wrong equation family.
Confusing empirical verification with a mathematical proof.
Treating fallback-backed evidence as equivalent to direct SVD recovery.

Extension ideas#

Swap Heat for Burgers, KdV, or Fisher-KPP and compare residual and fit diagnostics.
Change fit_epsilon and inspect the condition number and span distance.
Route the vertical-slice summary into a report table for your own experiment log.

What to read/run next#

Run 01_raw_vs_translation_canonical_discovery.ipynb for downstream preprocessing, then 06_orbit_coverage_diagnostics.ipynb for invariant/orbit reports.
