Raw vs translation-canonical discovery inputs

Current surface: V0.29.

Purpose

Show how symmetry-aware preprocessing can feed downstream sparse-discovery tooling while keeping the policy boundaries explicit.

What you will learn

• How raw canonical trajectories differ from translation-canonical discovery inputs.

• How PySINDy bridge arrays are backend-native, not canonical PDELie objects.

• How coverage diagnostics and orbit batches help audit finite translations before downstream use.

• Why orbit-expanded data still does not define train/heldout or leakage policy.

Required extras

.[downstream] or .[test] for PySINDy-related downstream cells; core APIs still run without treating PySINDy outputs as contracts.

Expected runtime

About 1 minute for the deterministic tutorial cells.

Out of scope

Not a full discovery benchmark, no manuscript policy, no success threshold policy, no broad discovery-backend framework.

These notebooks are tutorials, not API contracts. Example outputs are runtime summaries, not canonical paper artifacts.

from pathlib import Path
import sys

ROOT = Path.cwd()
if not (ROOT / "pyproject.toml").exists():
    ROOT = ROOT.parent
if str(ROOT) not in sys.path:
    sys.path.insert(0, str(ROOT))
import numpy as np

from notebooks._tutorial_utils import plot_coverage_counts, plot_field_heatmap, pretty_json
from pdelie.data import generate_heat_1d_field_batch
from pdelie.discovery import build_translation_canonical_discovery_inputs, to_pysindy_trajectories
from pdelie.invariants import build_uniform_translation_orbit_batch, compute_periodic_window_coverage
from pdelie.residuals import HeatResidualEvaluator
from pdelie.symmetry import fit_translation_generator

CONFIG = {
    "fit_epsilon": 1e-4,
    "coverage_shifts": [0.0, np.pi / 2.0, np.pi, 3.0 * np.pi / 2.0],
    "coverage_windows": [{"start": 0.0, "width": np.pi / 2.0}],
}
CONFIG

{'fit_epsilon': 0.0001,
 'coverage_shifts': [0.0,
  1.5707963267948966,
  3.141592653589793,
  4.71238898038469],
 'coverage_windows': [{'start': 0.0, 'width': 1.5707963267948966}]}

1. Start from raw trajectories

The raw batch is already canonical, but individual initial conditions can be translated relative to each other.

field = generate_heat_1d_field_batch(batch_size=4, num_times=33, num_points=64, seed=601)
evaluator = HeatResidualEvaluator()
generator = fit_translation_generator(field, evaluator, epsilon=CONFIG["fit_epsilon"])

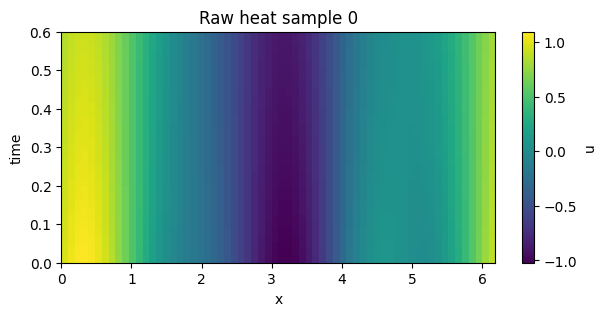

plot_field_heatmap(field, batch_index=0, title="Raw heat sample 0")

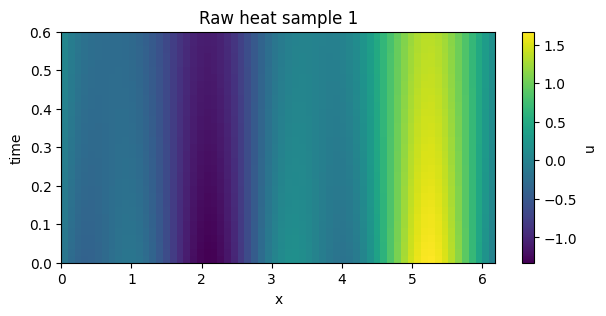

plot_field_heatmap(field, batch_index=1, title="Raw heat sample 1")

2. Translation-canonical discovery inputs are heuristic, not a proof

build_translation_canonical_discovery_inputs(...) aligns batch samples and returns backend bridge data. The transformed field is useful for downstream experiments, but the policy is a heuristic peak alignment.

canonical = build_translation_canonical_discovery_inputs(field, generator_family=generator)
transformed = canonical["transformed_field"]
trajectories, time_values, feature_names = to_pysindy_trajectories(transformed)

print("alignment shifts:", canonical["alignment_shifts"])
print("trajectory count:", len(trajectories))
print("feature count:", len(feature_names))

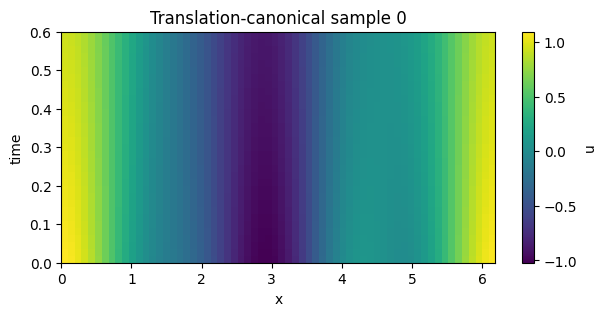

plot_field_heatmap(transformed, batch_index=0, title="Translation-canonical sample 0")

alignment shifts: [-0.2945243112740431, -5.301437602932776, -5.792311455056181, -2.454369260617026]
trajectory count: 4
feature count: 64

3. Coverage tells you which grid points your finite shifts touch

Coverage here is grid-point coverage, not continuous interval measure. It is useful for reasoning about observation support before a downstream fit.

x = field.coords["x"]
coverage = compute_periodic_window_coverage(
    x=x,
    windows=CONFIG["coverage_windows"],
    shifts=CONFIG["coverage_shifts"],
)
print(pretty_json({k: coverage[k] for k in ("coverage_fraction", "covered_grid_point_count", "max_uncovered_run_points")}))

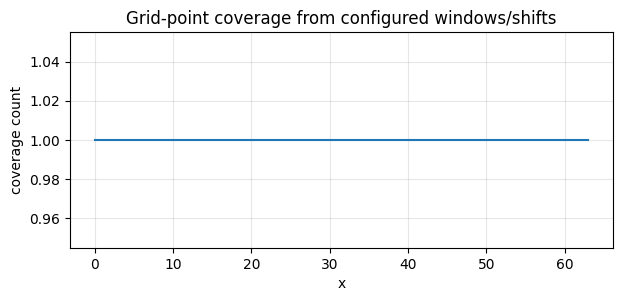

plot_coverage_counts(coverage, title="Grid-point coverage from configured windows/shifts")

{
  "coverage_fraction": 1.0,
  "covered_grid_point_count": 64,
  "max_uncovered_run_points": 0
}

4. Materialized orbit batches are data utilities, not split policy

build_uniform_translation_orbit_batch(...) constructs orbit-expanded data. It preserves source and shift provenance, but it does not decide train/heldout policy or protect you from leakage.

orbit = build_uniform_translation_orbit_batch(
    field,
    shifts=CONFIG["coverage_shifts"],
    source_field_id="heat_seed_601",
)
print("source shape:", field.values.shape)
print("orbit shape:", orbit.field.values.shape)
print(pretty_json({
    "summary_type": orbit.report["summary_type"],
    "ordering": orbit.report["ordering"],
    "source_batch_indices_head": orbit.report["source_batch_indices"][:8],
    "shift_indices_head": orbit.report["shift_indices"][:8],
    "warning": "you still own train/heldout split policy",
}))

source shape: (4, 33, 64, 1)
orbit shape: (16, 33, 64, 1)
{
  "ordering": "shift_major",
  "shift_indices_head": [
    0,
    0,
    0,
    0,
    1,
    1,
    1,
    1
  ],
  "source_batch_indices_head": [
    0,
    1,
    2,
    3,
    0,
    1,
    2,
    3
  ],
  "summary_type": "uniform_translation_orbit_batch",
  "warning": "you still own train/heldout split policy"
}

Limitations

This notebook is paper-agnostic by design. PySINDy output names are backend-native labels, not canonical PDELie equation terms. Any downstream success thresholds, train/heldout split choices, or leakage controls belong in your experiment layer.

Recap

Translation-canonical inputs, coverage reports, and materialized orbit batches are complementary tools for downstream discovery workflows.

Limitations and common pitfalls

• This is not a full sparse-discovery benchmark.

• Backend-native PySINDy labels are not canonical PDELie equation terms.

• Orbit-expanded data does not decide train/heldout policy or leakage safety.

• Discovery thresholds are task policy, not PDELie policy.

Extension ideas

• Replace the Heat fixture with your own canonical FieldBatch.

• Compare raw, canonicalized, and orbit-expanded inputs under the same downstream backend.

• Add a held-out split before materializing orbits when leakage matters.

What to read/run next

Run 02_robustness_sweeps.ipynb to stress diagnostic metrics before trusting downstream outputs.
